Synchronous invocations

Synchronous invocations allow obtaining the execution output as the response to the HTTP call to the /run/<SERVICE_NAME> path of the OSCAR API. For this, OSCAR delegates the execution to a serverless back-end (e.g. Knative) which uses an auto-scaled set of pods to process the requests.

ℹ️

You may find references in the documentation or examples to OpenFaaS, which was used in older versions of OSCAR. Recent versions of OSCAR use Knative as the serverless back-end for synchronous invocations, which provides several benefits such as scale-to-zero or load-balanced auto-scaled set of pods.

Synchronous invocations can be made through OSCAR CLI, using the command oscar-cli service run:

oscar-cli service run [SERVICE_NAME] {--input | --text-input} {-o | -output }

You can check these examples:

• plant-classification-sync
• text-to-speech.

The input can be sent as a file via the --input flag, and the result of the execution will be displayed directly in the terminal:

oscar-cli service run plant-classification-sync --input images/image3.jpg

Alternatively, it can be sent as plain text using the --text-input flag and the result stored in a file using the --output flag:

oscar-cli service run text-to-speech --text-input "Hello everyone"  --output output.mp3

Synchronous Invocations via OSCAR CLI

OSCAR CLI simplifies the execution of services synchronously via the oscar-cli service run command. This command requires the input to be passed as text through the --text-input flag or directly a file to be sent by passing its path through the --input flag. Both input types are automatically encoded in Base64.

It also allow setting the --output flag to indicate a path for storing (and decoding if needed) the output body in a file, otherwise the output will be shown in stdout.

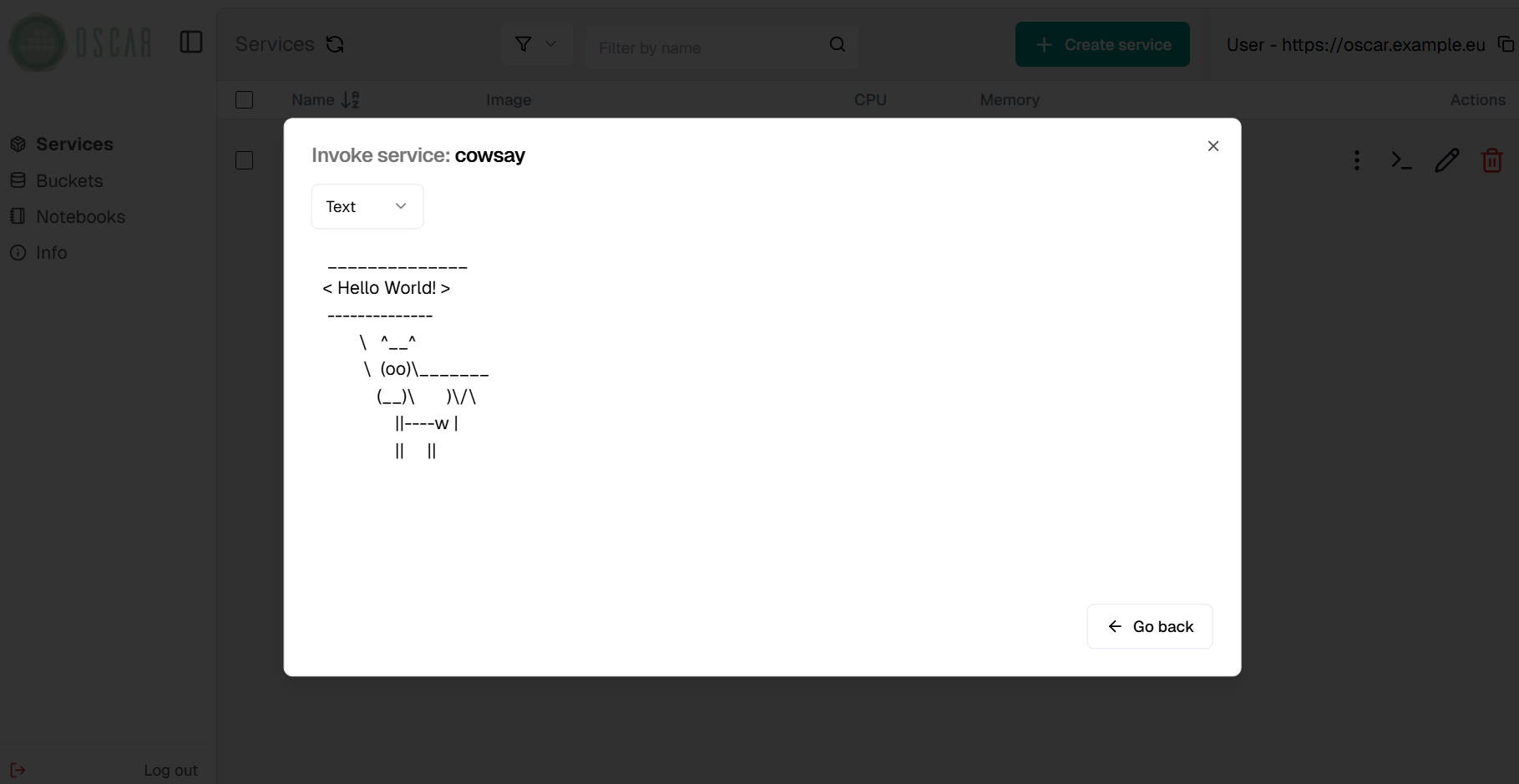

An illustration of triggering a service synchronously through OSCAR-CLI can be found in the cowsay example.

oscar-cli service run cowsay --text-input '{"message":"Hello World"}'

Synchronous Invocations via OSCAR API

OSCAR services can also be invoked via traditional HTTP clients such as cURL using the path /run/<SERVICE_NAME> defined in the OSCAR API . However, you must take care to properly format the input to one of the two supported formats (JSON or Base64 encode) and include the service access token in the request.

An illustration of triggering a service synchronously through cURL can be found in the cowsay example.

To send an input file through cURL, you must encode it in base64 or json. To avoid issues with the output in synchronous invocations remember to put the log_level as CRITICAL. Output, which is encoded in base64 or in json, should be decoded as well. Save output in the expected format of the use-case.

base64 input.png | curl -X POST -H "Authorization: Bearer <TOKEN>" \
 -d @- https://<CLUSTER_ENDPOINT>/run/<OSCAR_SERVICE> | base64 -d > result.png

Service access tokens

As detailed in the API specification, invocation paths require either the service access token or the Access Token of the user when the cluster is integrated with EGI Check-in, in the request header for authentication (any of them is valid). Service access tokens are auto-generated in service creation and update, and MinIO eventing system is automatically configured to use them for event-driven file processing. Tokens can be obtained through the API, using the oscar-cli service get command or directly from the web interface.

Limitations

Although the use of the Knative Serverless Backend for synchronous invocations provides elasticity similar to the one provided by their counterparts in public clouds, such as AWS Lambda, synchronous invocations are not still the best option for run long-running resource-demanding applications, like deep learning inference or video processing.

The synchronous invocation of long-running resource-demanding applications may lead to timeouts on Knative pods. Therefore, we consider asynchronous invocations (which generate Kubernetes jobs) as the optimal approach to handle event-driven file processing.
