Using the MinIO Storage Provider

Each OSCAR cluster includes a deployed MinIO instance, which is used to trigger service executions. When a service is configured to use MinIO as its storage provider, it monitors a specified input folder for new data. Whenever new data is added to this folder, it triggers the associated service to execute.

Additionally, OSCAR allows direct operations on the MinIO instance—such as creating, updating, and deleting buckets—that are independent of any specific service but still governed by the same visibility rules as services.

Using graphical interfaces

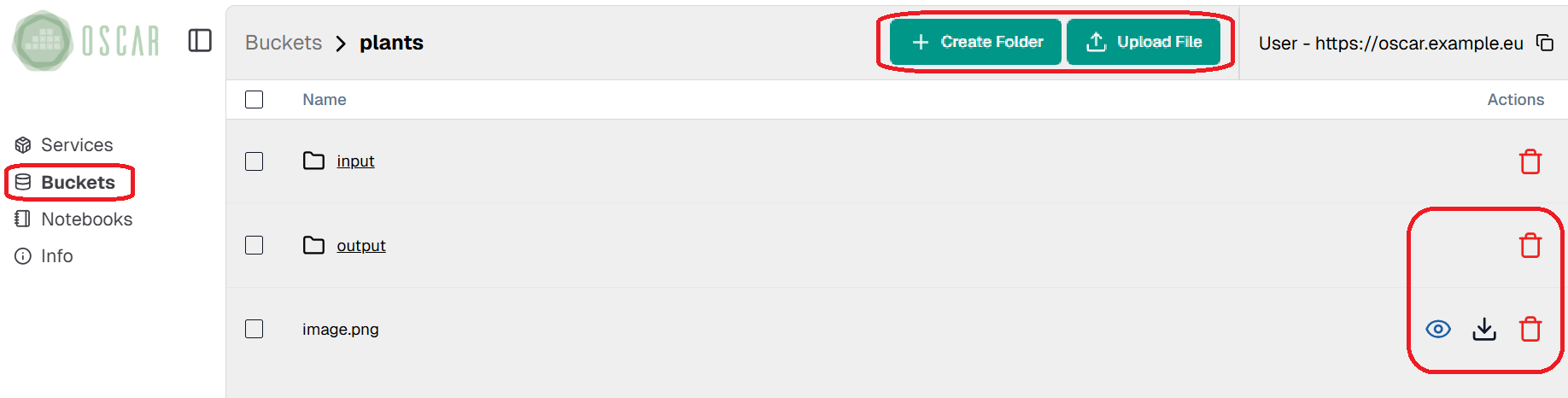

  • Using OSCAR-Dashboard: The following image highlights the section where MinIO buckets are accessible. In this section, users can view a list of buckets visible to them, including both service-associated and standalone buckets. They can also perform actions such as creating folders and uploading files.

minio-buckets

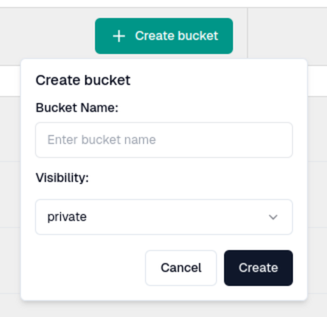

As shown in the image below, this section allows users to create individual buckets and define the desired visibility policy for each bucket.

create-buckets

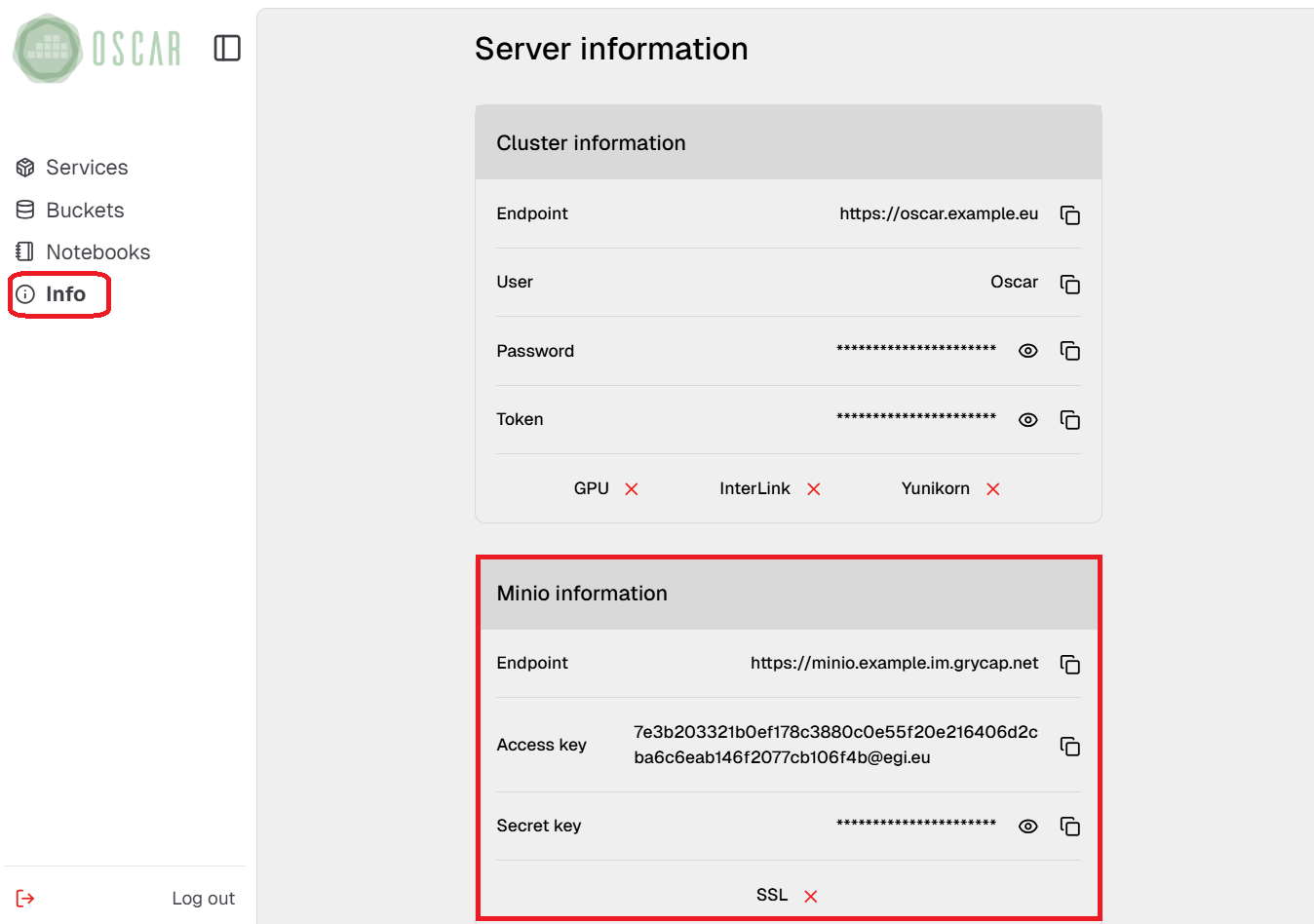

  • Using the MinIO Console UI: Access details for this interface are available in the "Info" tab within the OSCAR Dashboard. This tab provides the MinIO console endpoint and the necessary credentials to log in, where the Access Key serves as the username, and the Secret Key functions as the password.

oscar-info

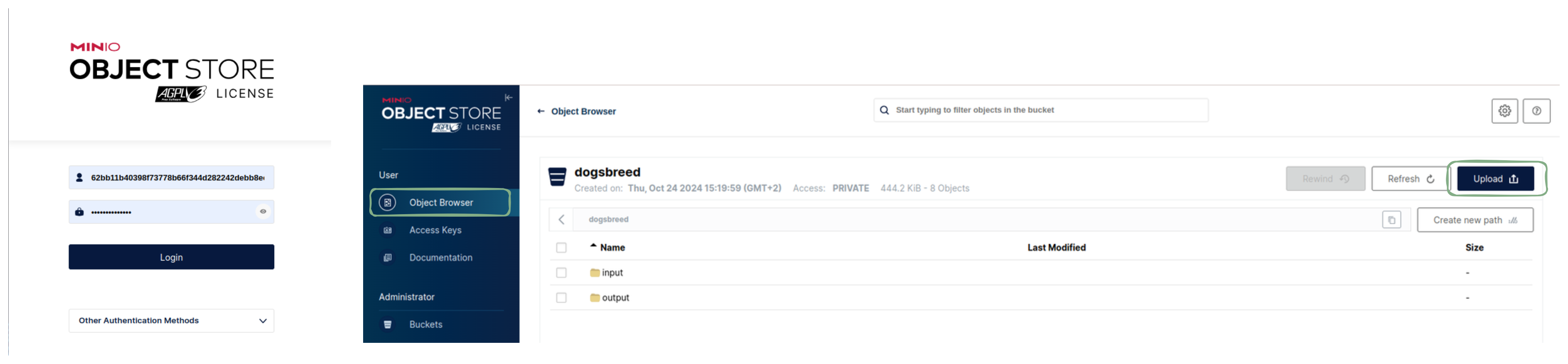

Finally, the following image provides an overview of the MinIO login panel and the "Object Browser" tab. Once logged in, the "Object Browser" tab allows users to navigate their available buckets, view stored objects, and perform various operations such as uploading, downloading, or deleting files. However, users do not have permission to create buckets directly from this interface, as each bucket requires specific policies to define its visibility.

oscar-info

Further information about the MinIO Console avaliable on MinIO Console documentation.

Using command-line interfaces

MinIO buckets can also be managed through oscar-cli command-line or the official MinIO client.

  • oscar-cli: The OSCAR client provides a dedicated set of commands for accessing files within buckets. It is important to note that this interface does not support DELETE or UPDATE operations. Below is a brief overview of the available commands and their functionalities.
  • get-file: Get file from a service's storage provider.
  • list-files: List files from a service's storage provider path.
  • put-file: Upload a file on a service storage provider.

An example of a put-file operation:

bash oscar-cli service put-file fish-detector.yaml minio .path/to/your/images ./fish-detector/input/

  • mc: If a user wants to use the MinIO client it needs to follow some previous steps.
  • Install the client: Detailed instructions for installing the MinIO client (mc) are available in the official documentation.

  • Configure the MinIO instance: The client requires credentials to connect and interact with the MinIO instance. This configuration can be set with the following command:

    bash mc alias set myminio https://minio.gracious-varahamihira6.im.grycap.net YOUR-ACCESS-KEY YOUR-SECRET-KEY

Once the client is configured, users can perform various operations supported by the MinIO client. For a complete list of available commands and their usage, refer to the MinIO client reference. The following example demonstrates a PUT operation, where a file is uploaded to a specific folder within a bucket.

bash mc cp /path/to/your/images/*.jpg myminio/fish-detector/input/
