OSCAR Service

OSCAR allows the creation of serverless file-processing services based on container images. These services require a user-defined script with the commands responsible of the processing. The platform automatically mounts a volume on the containers with the FaaS Supervisor component, which is in charge of:

  • Downloading the file that invokes the service and make it accessible through the INPUT_FILE_PATH environment variable.
  • Execute the user-defined script.
  • Upload the content of the output folder accessible via the TMP_OUTPUT_DIR environment variable.

FaaS Supervisor

FaaS Supervisor, the component in charge of managing the input and output of services, allows JSON or base64 encoded body in service requests. The body of these requests will be automatically decoded into the invocation's input file available from the script through the $INPUT_FILE_PATH environment variable.

The output of synchronous invocations will depend on the application itself:

  1. If the script generates a file inside the output dir available through the $TMP_OUTPUT_DIR environment variable, the result will be the file encoded in base64.
  2. If the script generates more than one file inside $TMP_OUTPUT_DIR, the result will be a zip archive containing all files encoded in base64.
  3. If there are no files in $TMP_OUTPUT_DIR, FaaS Supervisor will return its logs, including the stdout of the user script run. To avoid FaaS Supervisor's logs, you must set the service's log_level to CRITICAL.

This way users can adapt OSCAR's services to their own needs.

The FaaS Supervisor supports the following storage back-ends:

Container images

Container images on asynchronous services use the tag imagePullPolicy: Always, which means that Kubernetes will check for the image digest on the image registry and download it if it is not present. So, if you are using an image without a specific tag or with the latest tag, the service will automatically download and use the most recent version of the image on its executions, whenever the image is updated.

You can follow one of the examples in order to test the OSCAR framework for specific applications. We recommend you to start with the plant classification example.

External Storage Providers

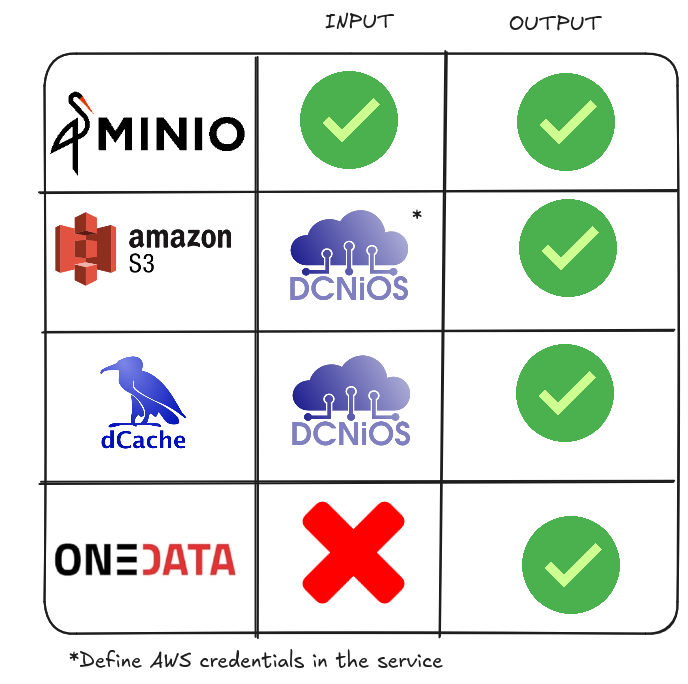

FaaS Supervisor downloads the input file and uploads the output file. Each storage provider has specific parameters, authentication, and capabilities. The current implementation supports:

  • Input: minio (default), webdav/dCache, rucio.
  • Output: minio, s3, onedata.

MinIO

OSCAR installs a MinIO inside the cluster. This default MinIO can be referenced as minio or minio.default in the input and output parameters of the OSCAR service. You can also define external MinIO endpoints in the storage provider section. MinIO works as input or output without additional software. MinIO can perform bucket replication between two buckets.

dCache (WebDAV)

dCache uses the WebDAV protocol and is supported as an input provider through WebDAV. Configure it in the storage providers map and reference it in the service input. Note that DCNiOS is necessary to use dCache as input storage.

Rucio

Rucio is supported as an input provider. Configure credentials under storage_providers.rucio and reference it in the input paths.

S3

Provide AWS credentials via environment variables (AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, AWS_DEFAULT_REGION) or via t he FDL s3 provider configuration. S3 is supported as an output storage system. Note that DCNiOS is necessary to use S3 as input storage.

Onedata

Onedata is supported as an output storage provider. Check the Onedata storage provider for more information.

Storage
