Integration with Node-RED

Node-RED is a flow-based development tool for visual programming, widely used to connect hardware devices, APIs, and online services. Its browser-based editor makes creating and deploying automation workflows simple.

In the context of OSCAR integration, Node-RED can be deployed and configured to interact with OSCAR services using authentication tokens obtained after logging in or using tokens specific for the service.

Simple tutorial

This tutorial demonstrates a simple workflow that calls the YOLOv8 synchronous service. You will learn: - How to deploy a Node-RED instance - How to connect Node-RED to the YOLOv8 synchronous service - How to authenticate using a token - How to process image data through the workflow

Steps

  1. Deploy YOLOv8

    Go to the OSCAR dashboard and select Create service -> FDL. Use the following configuration:

    FDL: yaml functions: oscar: - oscar-cluster: name: yolov8-node-red memory: 4Gi cpu: '2.0' image: ai4oshub/ai4os-yolov8-torch:latest script: script.sh log_level: CRITICAL Script: ```bash

    !/bin/bash

    RENAMED_FILE="${INPUT_FILE_PATH}.png" mv "$INPUT_FILE_PATH" "$RENAMED_FILE" OUTPUT_FILE="$TMP_OUTPUT_DIR/output.png" deepaas-cli --deepaas_method_output="$OUTPUT_FILE" predict --files "$RENAMED_FILE" --accept image/png 2>&1 echo "Prediction was saved in: $OUTPUT_FILE" ```

  2. Deploy Node-RED

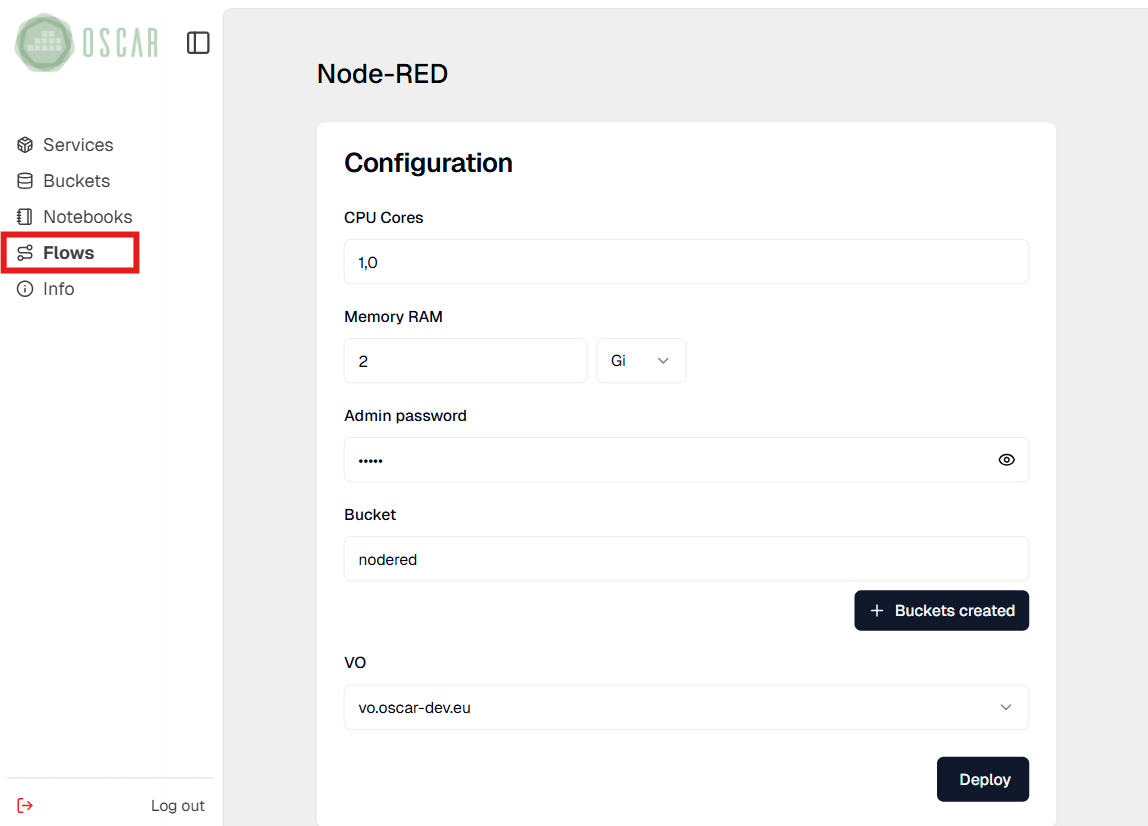

    In the OSCAR dashboard, go to Flows (Sidebar panel). Enter the admin password and select or create a Bucket.

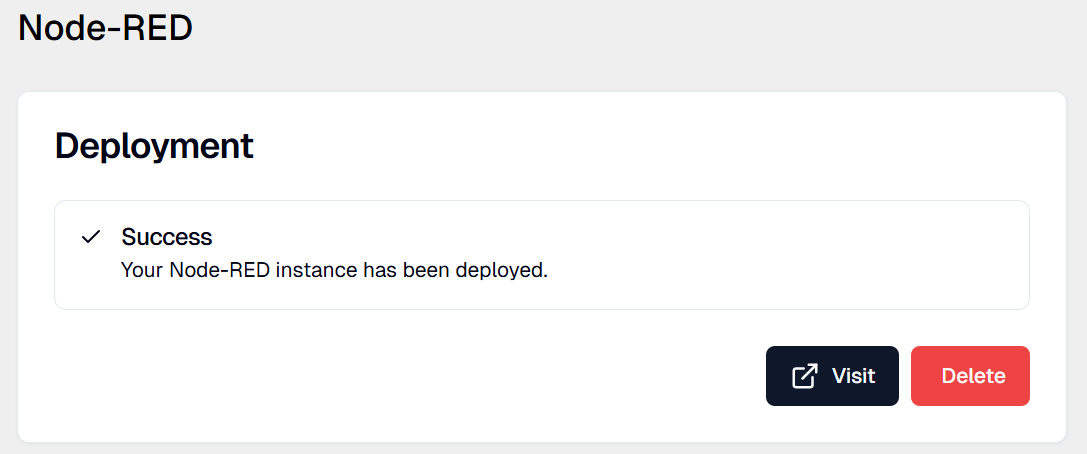

    After deploying Node-RED we need to navigate to its user interface.


    ℹ️

    If you get an nginx error, you need to wait a little bit for the service to run.

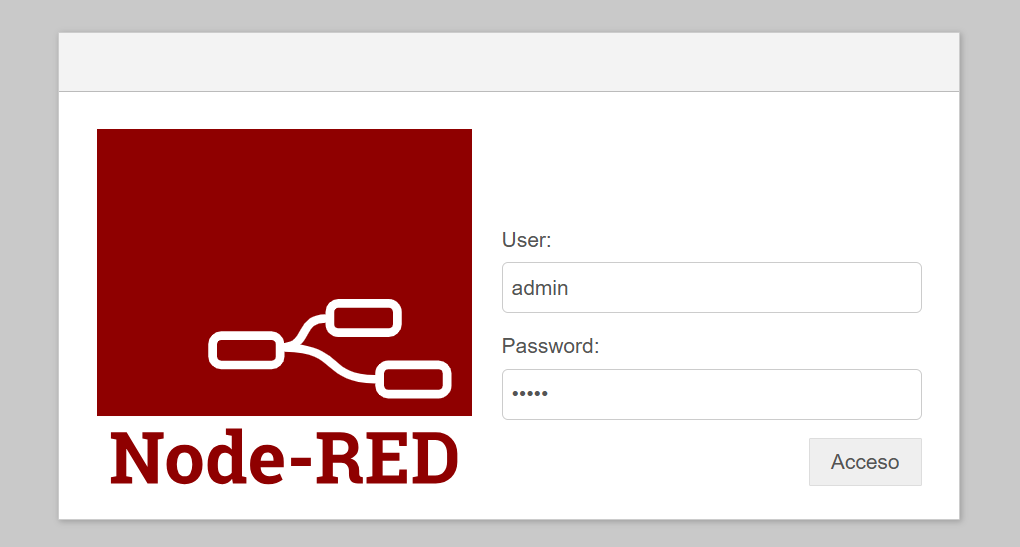

    Log in with your credentials (the user is always admin).

  3. Create a workflow in Node-RED

    Now we will create a workflow that will fetch an image from internet, make a request to Yolo8 service and visualize the result.

    We will need a the following list of components that can be found in the Node-RED sidebar menu:

    • Common → inject node
    • Network → HTTP request node
    • Output → image node
    • OSCAR → OSCAR YOLO8 node

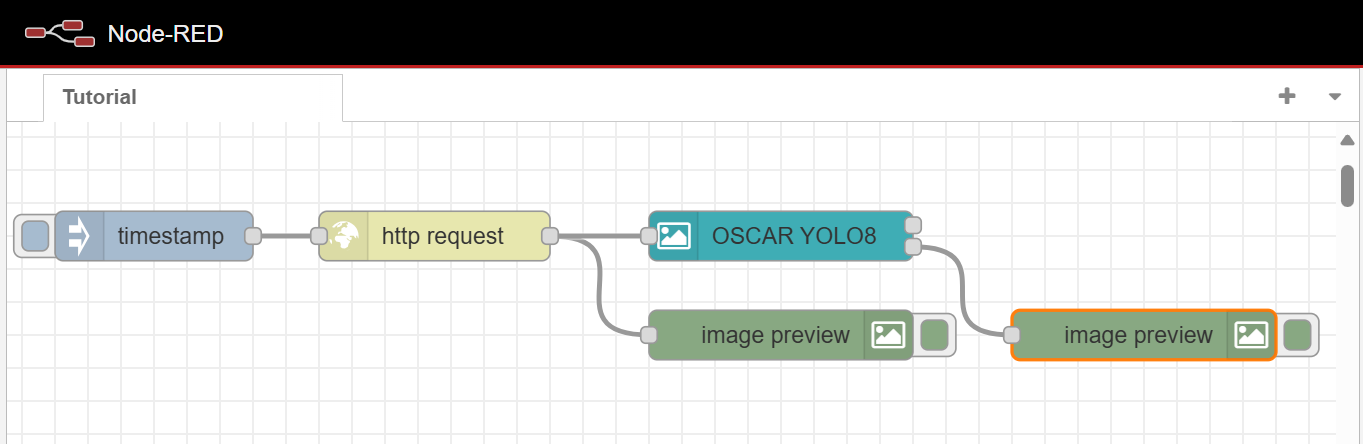

    Connect the components as shown:

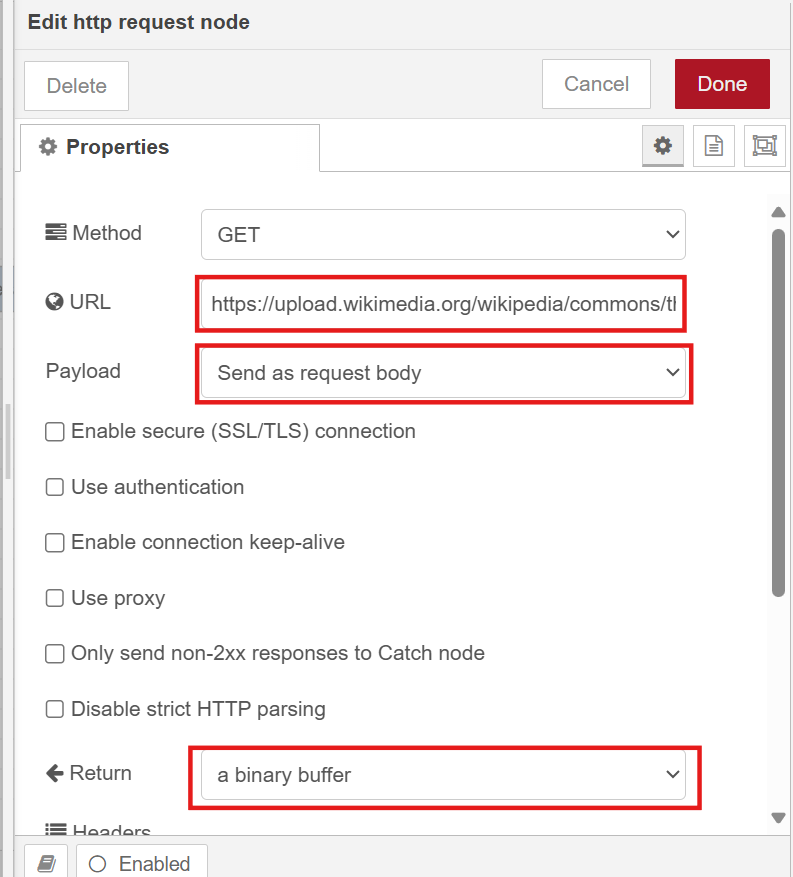

    To configure the HTTP request node (double-click it):

    • URL: URL of an image
    • Payload: Send as request body
    • Return: A binary buffer

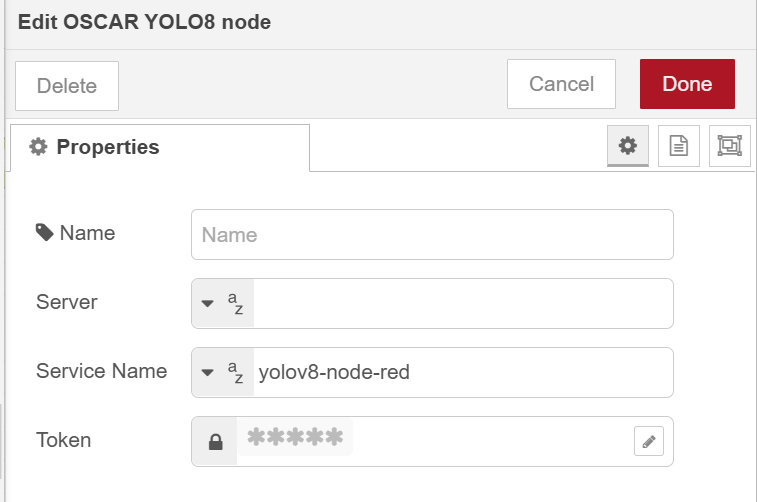

    To configure the OSCAR YOLO8 node (double-click it):

    • Server: URL of the cluster
    • Service Name: yolov8-node-red
    • Token: Obtain the token from OSCAR dashboard→ Info (Sidebar panel) → Access token


  4. Test the workflow

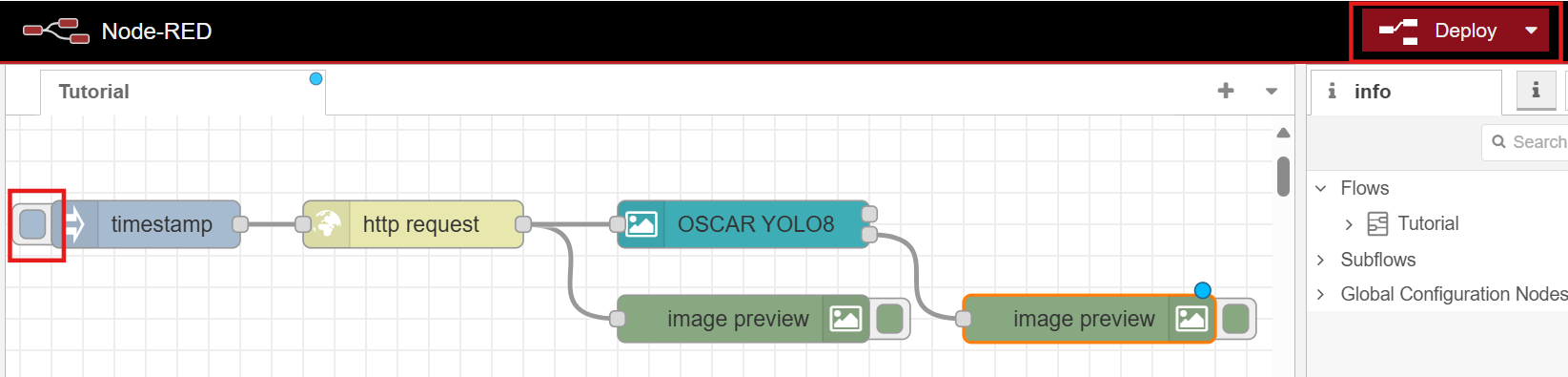

    After configuring your workflow, test it in the Node-RED Editor:

    1. Click Deploy (top right corner)
    2. Click the inject node

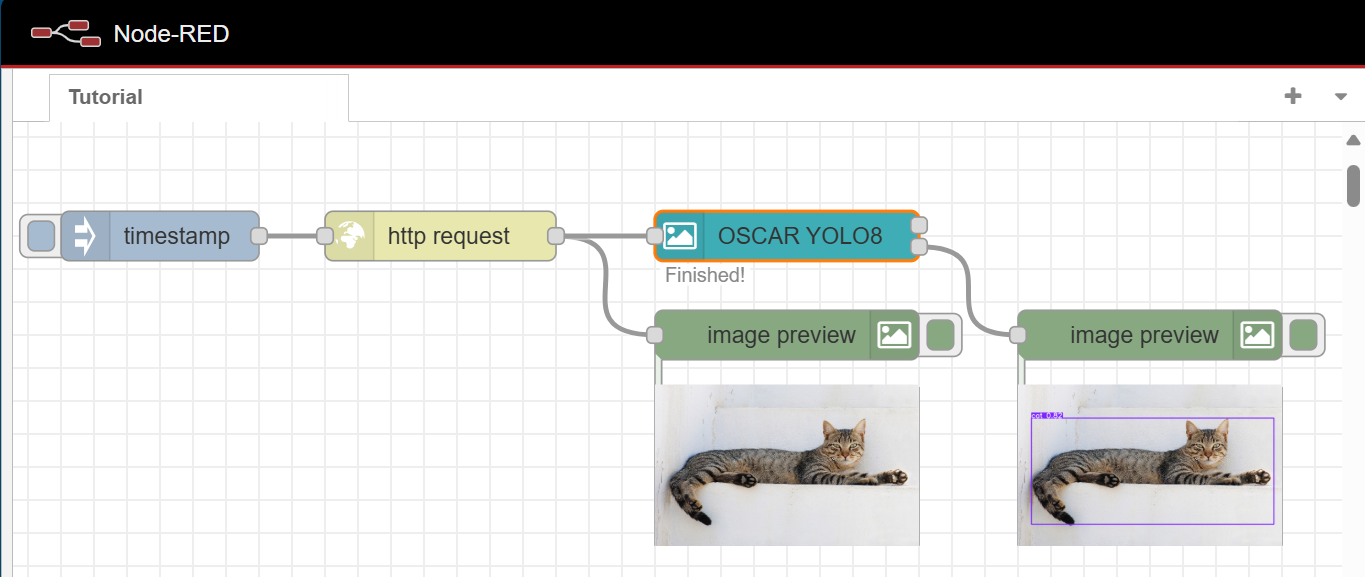

    You should see the result:
